Line Sensing Thermostat-
NEMA 4X: 1660-13A11
|
Specification
Enclosure Die cast aluminum with polyamid epoxy coating, NEMA 4X; watertight, dust tight and corrosion resistant. Connection Screw terminals on switch through 1/2-NPT hub. Switch SPDT UL listed with internal calibrated reference dial and tamperproof adjustment. Rating 22 amps at 480 VAC. Range 25¡ãto 325¡ãF (3¡ã to 163¡ãC) Sensor 10 Ft. 304 SS capillary with 1/8" SS bulb. Approval UL listed/CSA certified. Accuracy ¡À1% of adjustment range. |
Description

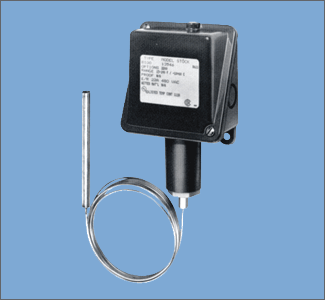

The 1660-13A11 thermostat is a watertight, dust tight and corrosion resistant temperature control in a lightweight die cast enclosure with an internal calibrated reference dial and tamperproof adjustment for outdoor or indoor locations. The liquid-filled thermal system, with its stainless steel bulb and capillary, provides a very dependable and accurate control system. |
|
