Ambient Sensing
Thermostat- NEMA 4X: 1660-18911
 |
Specification
Enclosure Die cast aluminum with polyamid epoxy coating, NEMA 4X; watertight, dust tight and corrosion resistant. Connection Screw terminals on switch through 1/2-NPT hub Switch SPDT UL listed with internal calibrated reference dial and tamperproof adjustment. Rating 22 amps at 480 VAC. Range 15¡ã- 140¡ãF Sensor 304 SS sensor stem. Approval UL listed / CSA certified. Accuracy ¡À1% of adjustment range. |
Description

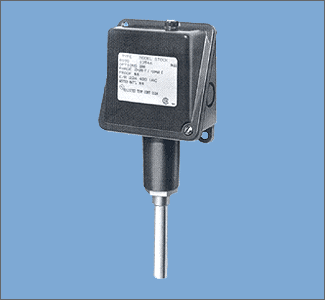

The 1660-18911 thermostat is a watertight, dust tight and corrosion resistant temperature control in a lightweight die cast enclosure with an internal calibrated reference dial and tamperproof adjustment for outdoor or indoor locations. The liquid-filled thermal system, with its stainless steel sensor stem, provides a very dependable and accurate control system. |
|
