Self-regulating Heating Cable Series 2300

Performance Ratings
Output wattage:
5, 10, 15 w/ft @ 50¡ãF

Supply voltages:
110 - 120 or 208V - 277Vac

Continuous maintenance temperature:
250¡ãF (120¡ãC) max

Maximum exposure temperature:
366¡ãF (185¡ãC)

T Rating*:
T-3

Braid resistance:
Tinned copper: 0.003 /ft Stainless steel: 0.125 /ft
*T-Rating per the 1999 NEC, Tables 500-5(d) and verified by FM and CSA.

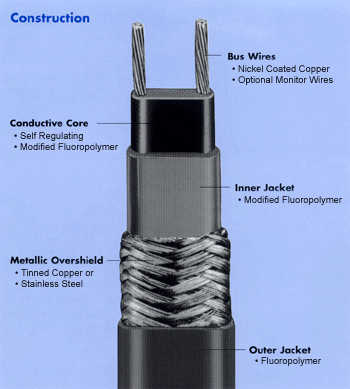

Description
The 2300 series of self-regulating heating cables are designed to supply a specified amount of heat at any point along their length in direct response to local temperature variations. These cables can maintain temperatures up to 250¡ãF (120¡ãC) and will withstand 150 psig saturated steam purging and intermittent temperature excursions to 366¡ãF (185¡ãC).

2300 series cables can be cut to length and terminated in the field, and will not overheat or burnout when overlapped.
